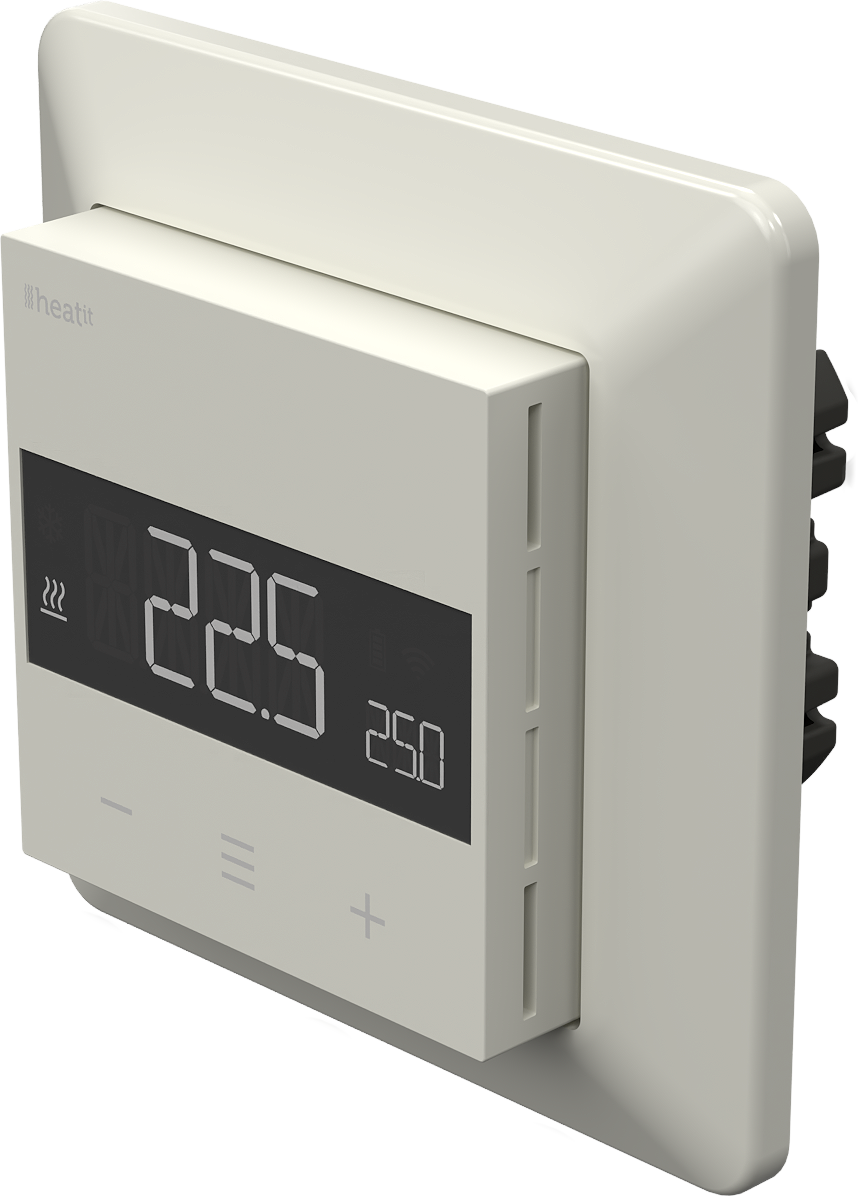

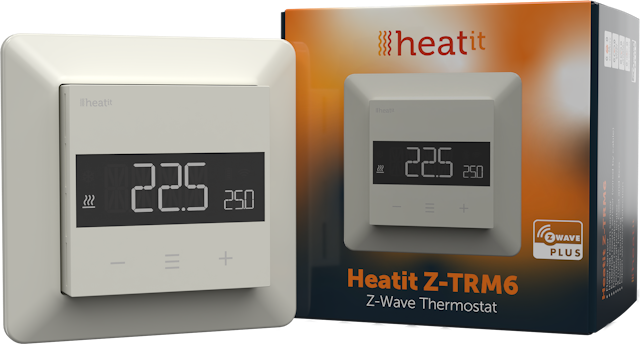

Heatit Z-TRM6 White RAL 9010

Z-Wave thermostat 3600W 16A 868.4 MHz

Art. no. 5430567

EAN/GTIN no. 7071236018070

Download Documents

Product information

Data sheet

Datasheet

Product documents

ZeroX Detection Information

ZeroX Deteksjon Informasjon

Generell info montering_General info installation

Installation documents

Manual

Quick Guide

Download OTA files

OTA Z-TRM6 V1.0.11

Text Download

General description

This text may be copied and used for marketing purposes of this product.

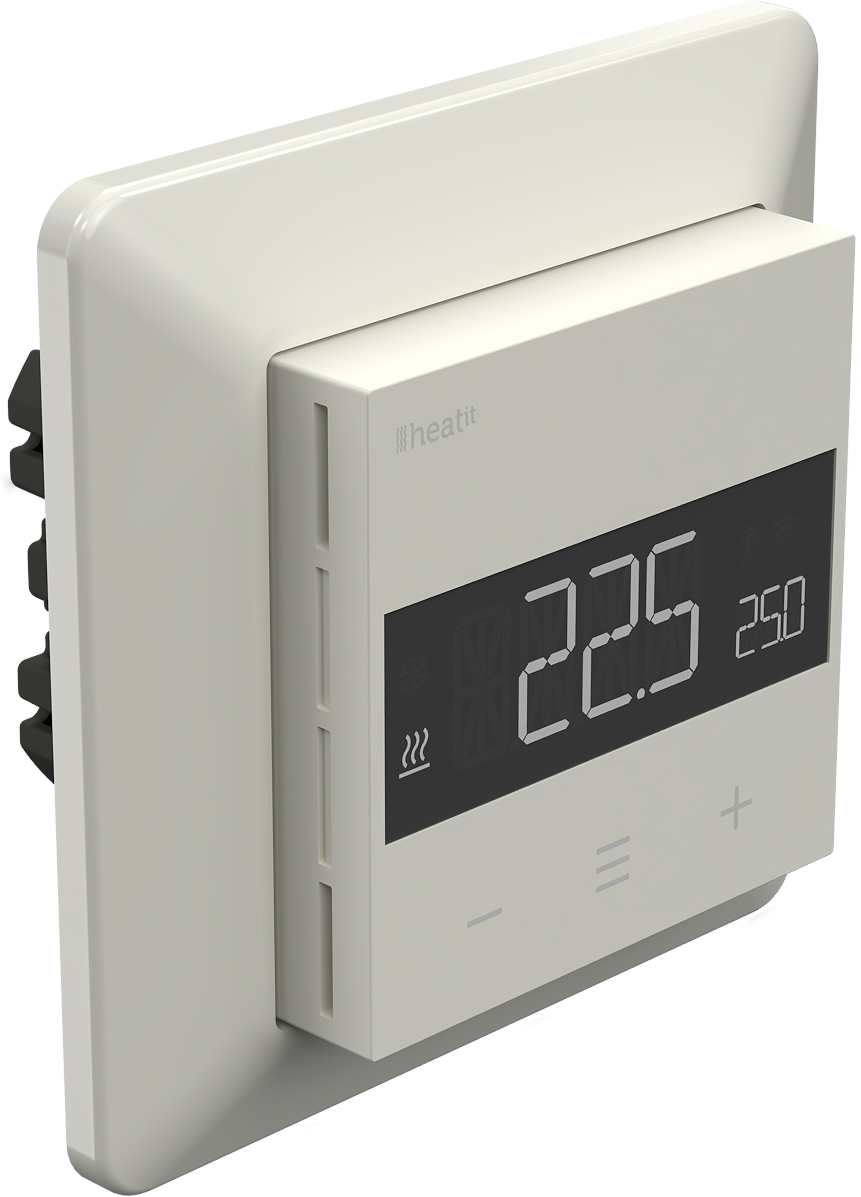

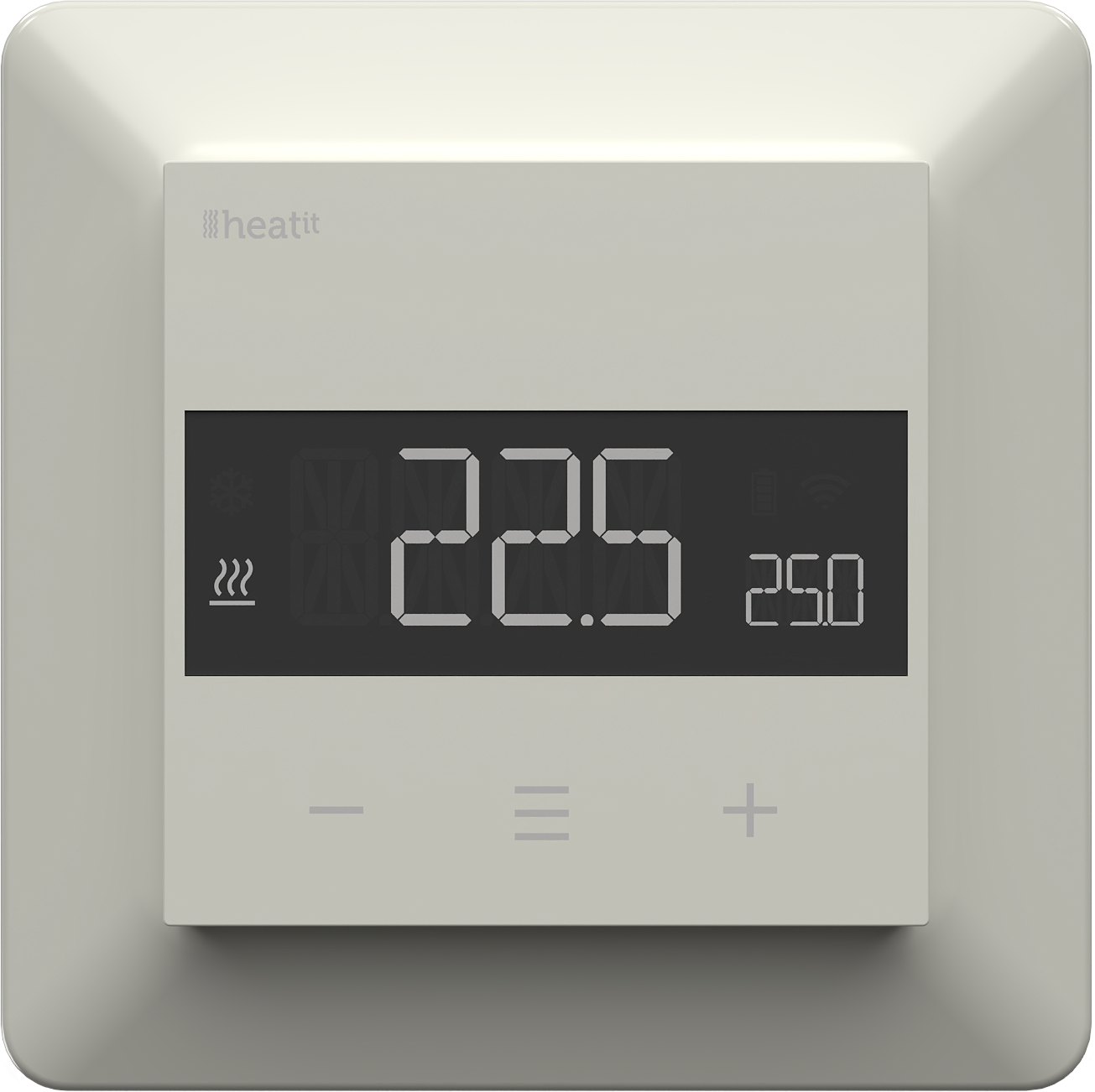

Smart thermostat. Heatit Z-TRM6 is an electronic thermostat designed for electrical heating and water based heating control. The thermostat can be controlled through your Z-Wave network, or via the buttons on the front of the thermostat. The thermostat has a user friendly interface.

Heatit Z-TRM6 has 3 modes; Heat - Cool and Eco.

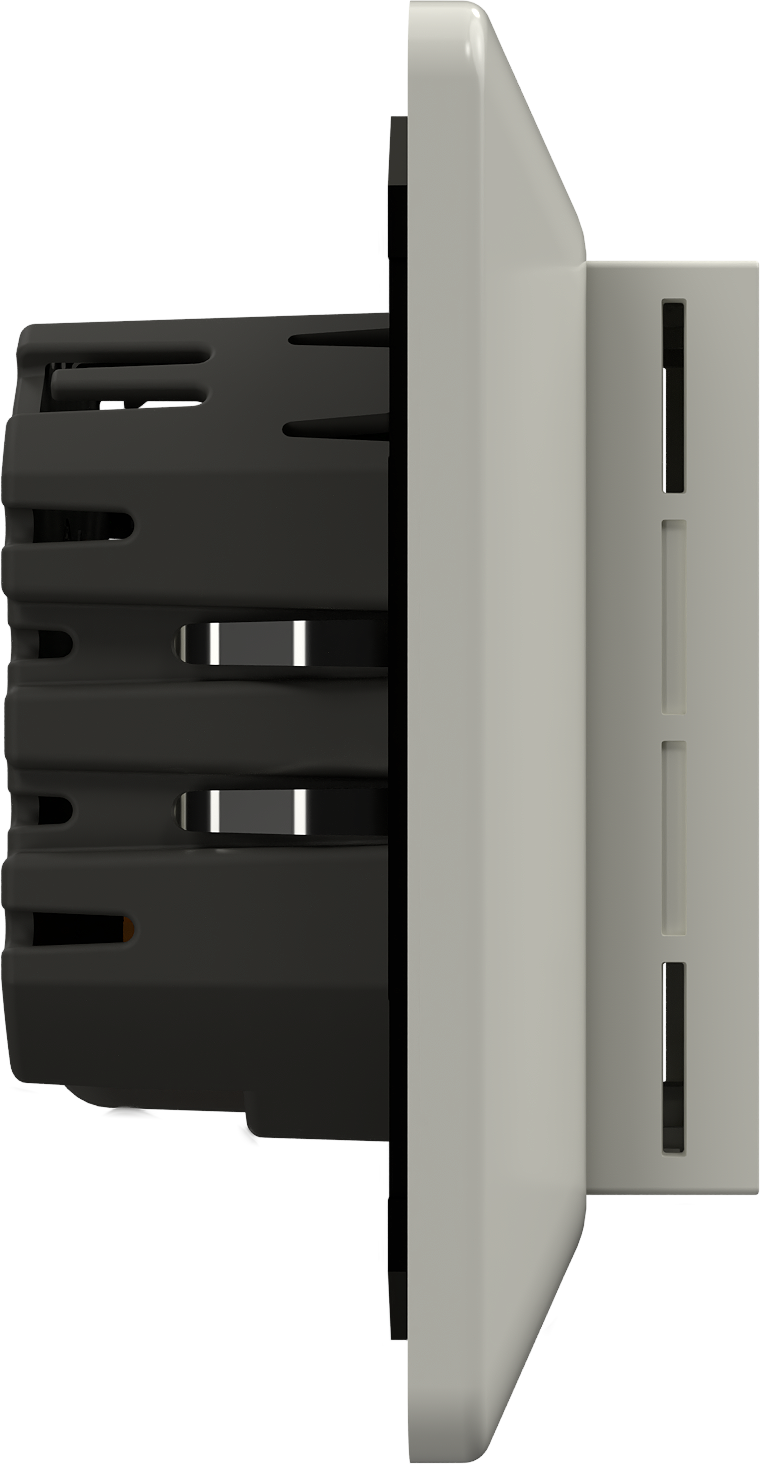

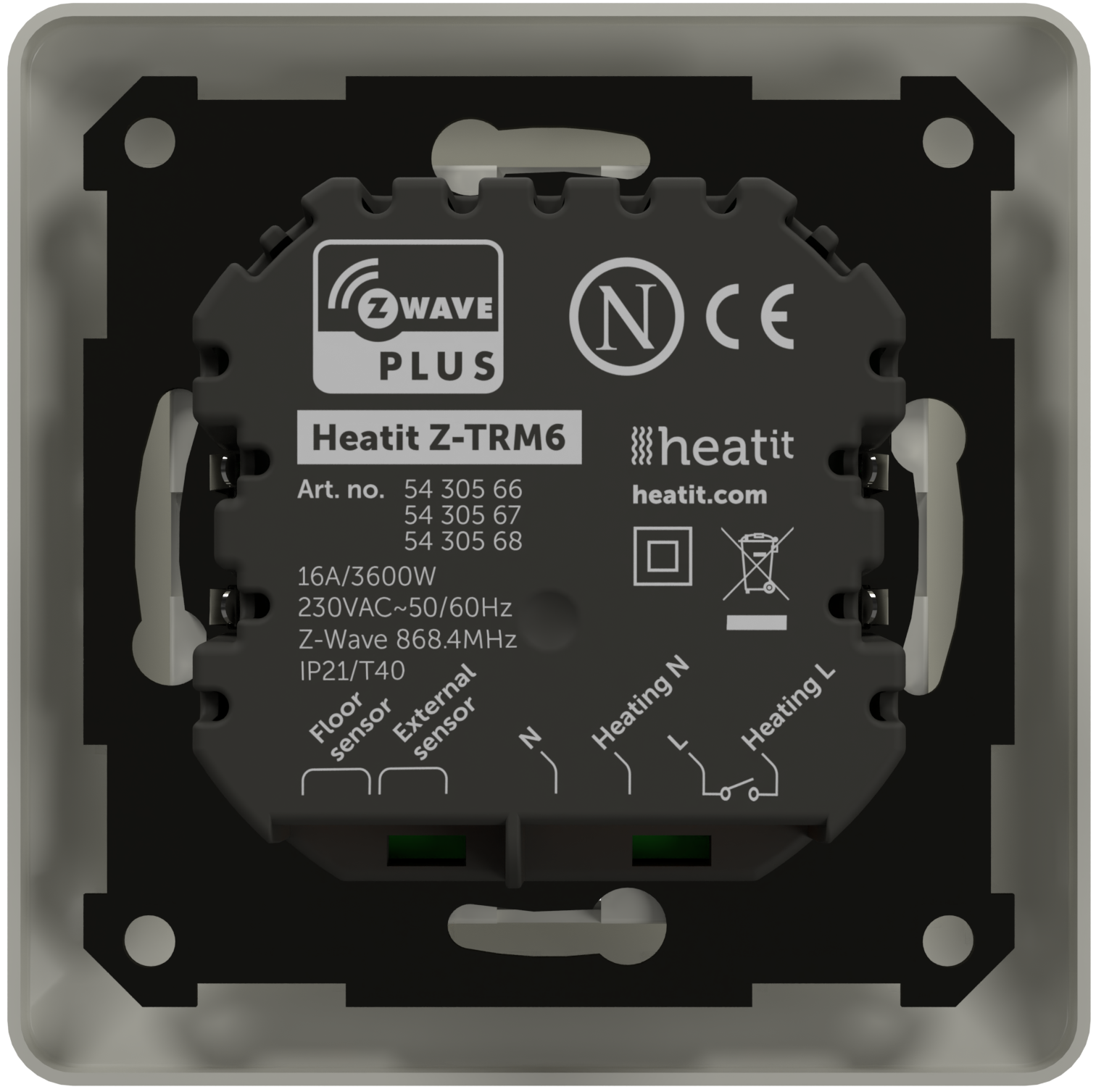

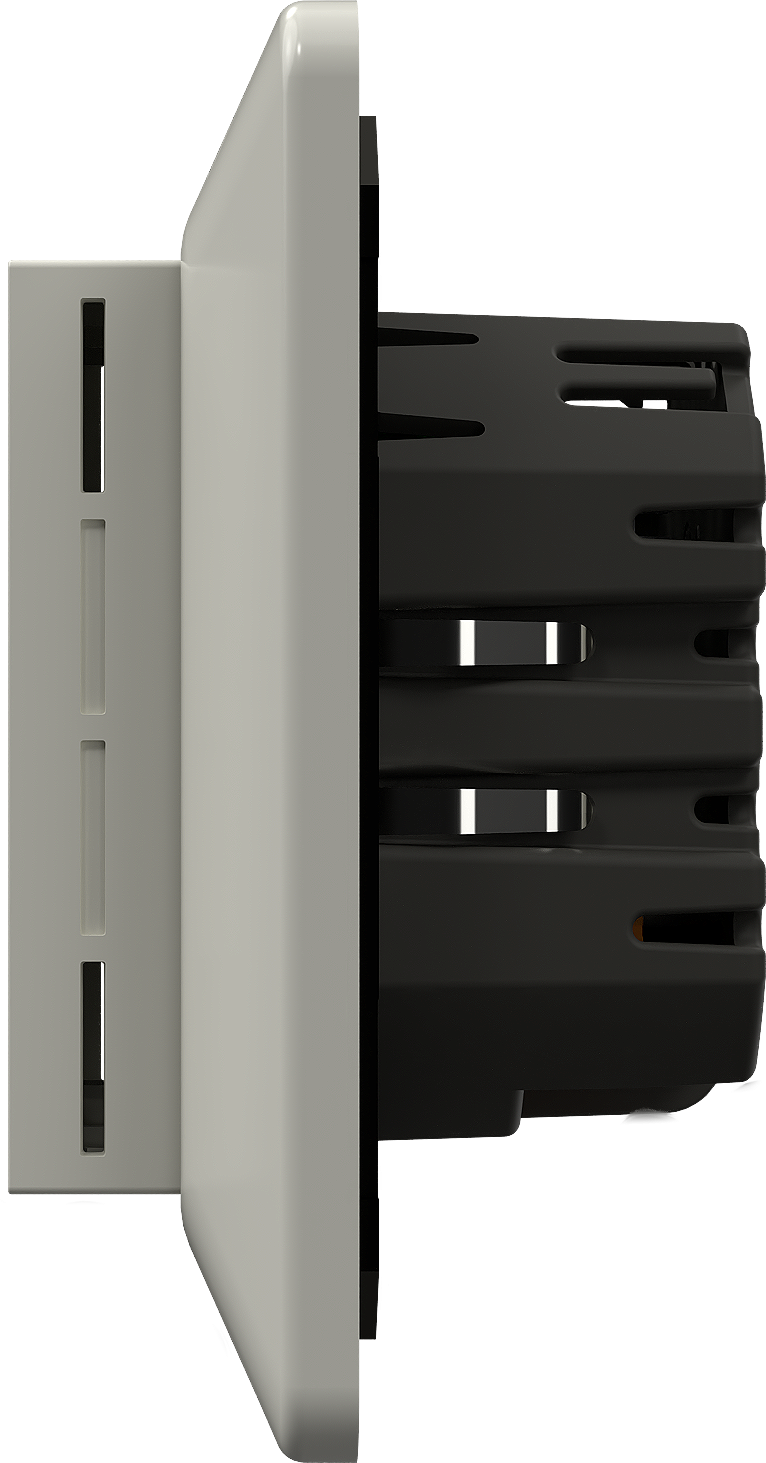

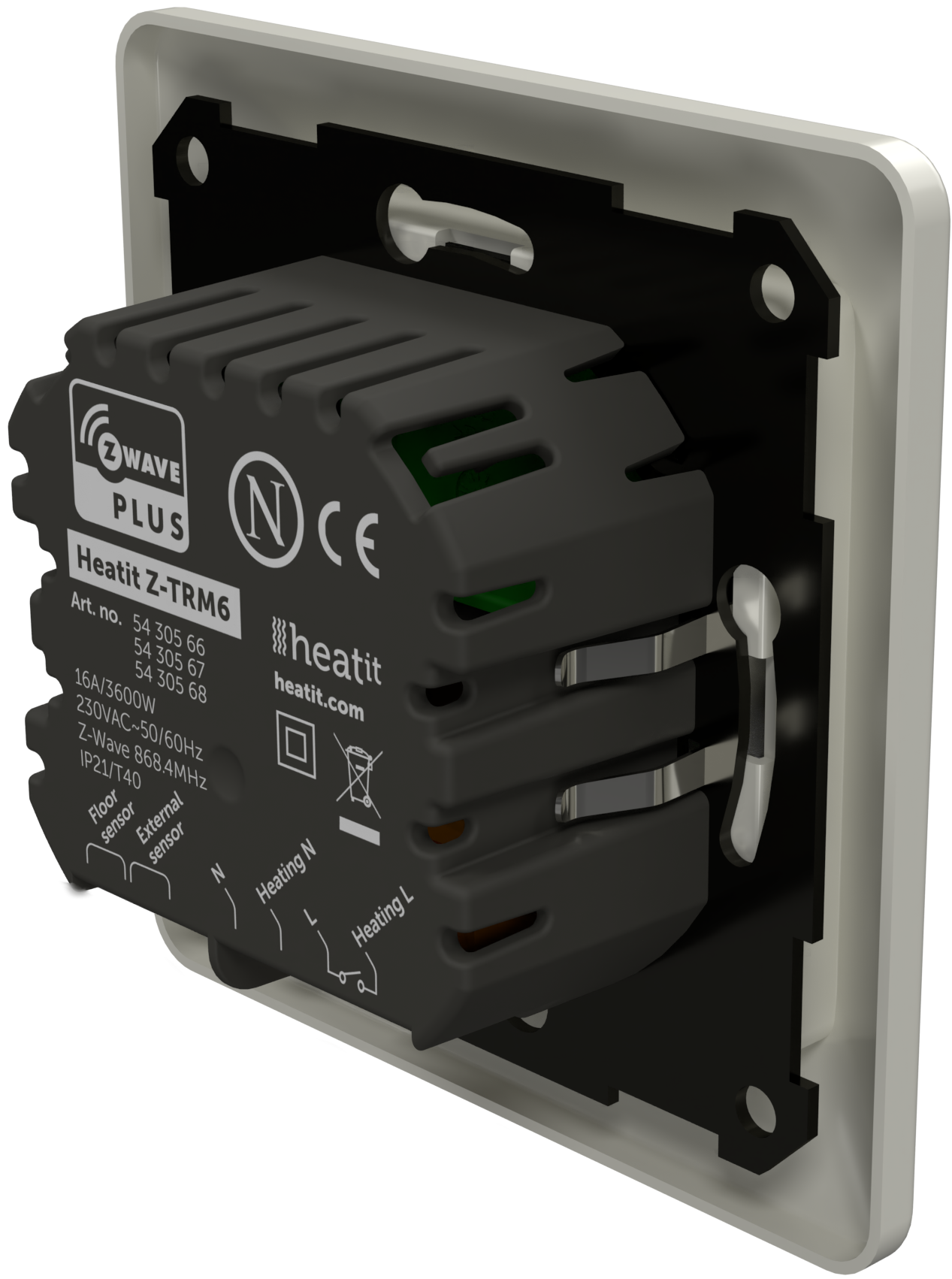

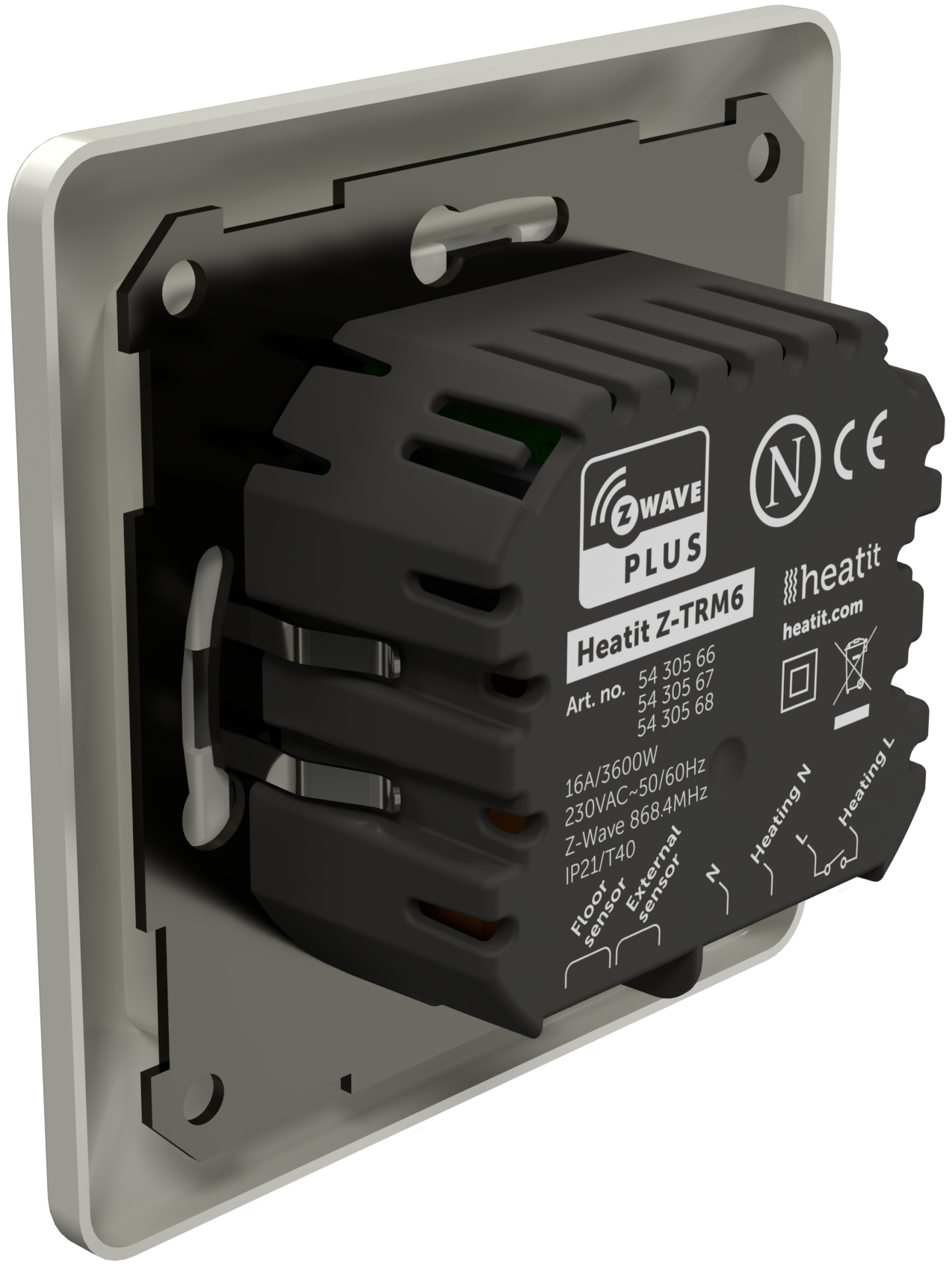

The thermostat fits in standard European junction boxes and may be used with most System 55 frames. It has a sturdy metal frame for secure fastening in the junction box. The thermostat has one built-in room temperature sensor. Two additional external temperature sensors may also be connected.

Heatit Z-TRM6 has active power metering, and it gives you the real time information about the power consumption. It also allows you to set the power metering value manually in case of connection with a contactor.

The device is equipped with ZeroX™ technology, which ensures the relay switches at 0V when turning on and off. This technology significantly extends the thermostat's lifespan.

The thermostat can be set up with multiple associations and can be used as a master thermostat. It can control up to 10 thermostats and 10 external relays e.g wall plugs.

The thermostat can withstand a resistive load of up to 16A/3600W at 230VAC. For loads above 13A, we recommend using a contactor.
The thermostat is designed for resistive loads. When using large resistive, capacitive, or inductive loads, a contactor should be used.

Click this icon to copy clean and unformatted text

Areas of use

This text may be copied and used for marketing purposes of this product.

Click this icon to copy clean and unformatted text

Unique Selling Propositions / USP

This text may be copied and used for marketing purposes of this product.

Modes - The thermostat has 3 modes: Heat - Cool, and Eco. Cool and Eco are new features.

Metal frame - The thermostat features a metal frame for secure mounting in the junction box, which enhances the product’s durability in contrast to previous plastic solutions.

Associations - The thermostat can be set up with multiple associations and can be used as a master thermostat. It can control up to 10 thermostats and 10 external relays.

ZeroX™ Detection – The thermostat features ZeroX™ technology, which ensures the relay switches on and off at 0V, significantly extending the relay's lifespan.

Power Regulator – Provides effective temperature control, even without using the thermostat's internal or external sensors.

Hysteresis - With hysteresis regulation enabled, the thermostat will regulate solely based on temperature. The thermostat switches on and off based on the hysteresis value in relation to the setpoint.

Pulse width modulation/PWM - With pulse width modulation regulation enabled, the thermostat will regulate based on cycles. The thermostat switches on and off in percentage intervals of the cycle.

Open window detection - With open window detection, the thermostat detects if a window is open, allowing it to cut off heating when there is a rapid drop in temperature.

Active power metering - Heatit Z-TRM6 has active power metering and it gives you real time information about your power consumption.

Push buttons - With a combination of push buttons and touch functionality, the thermostat has become more user-friendly.
