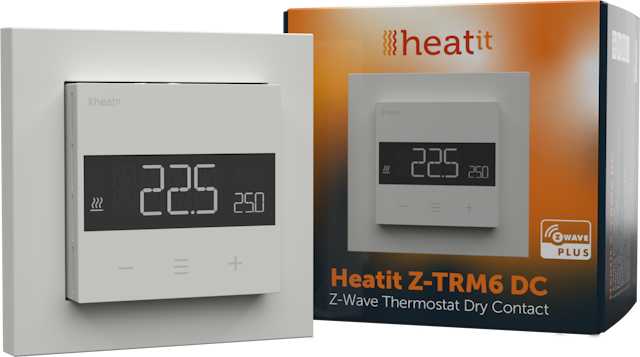

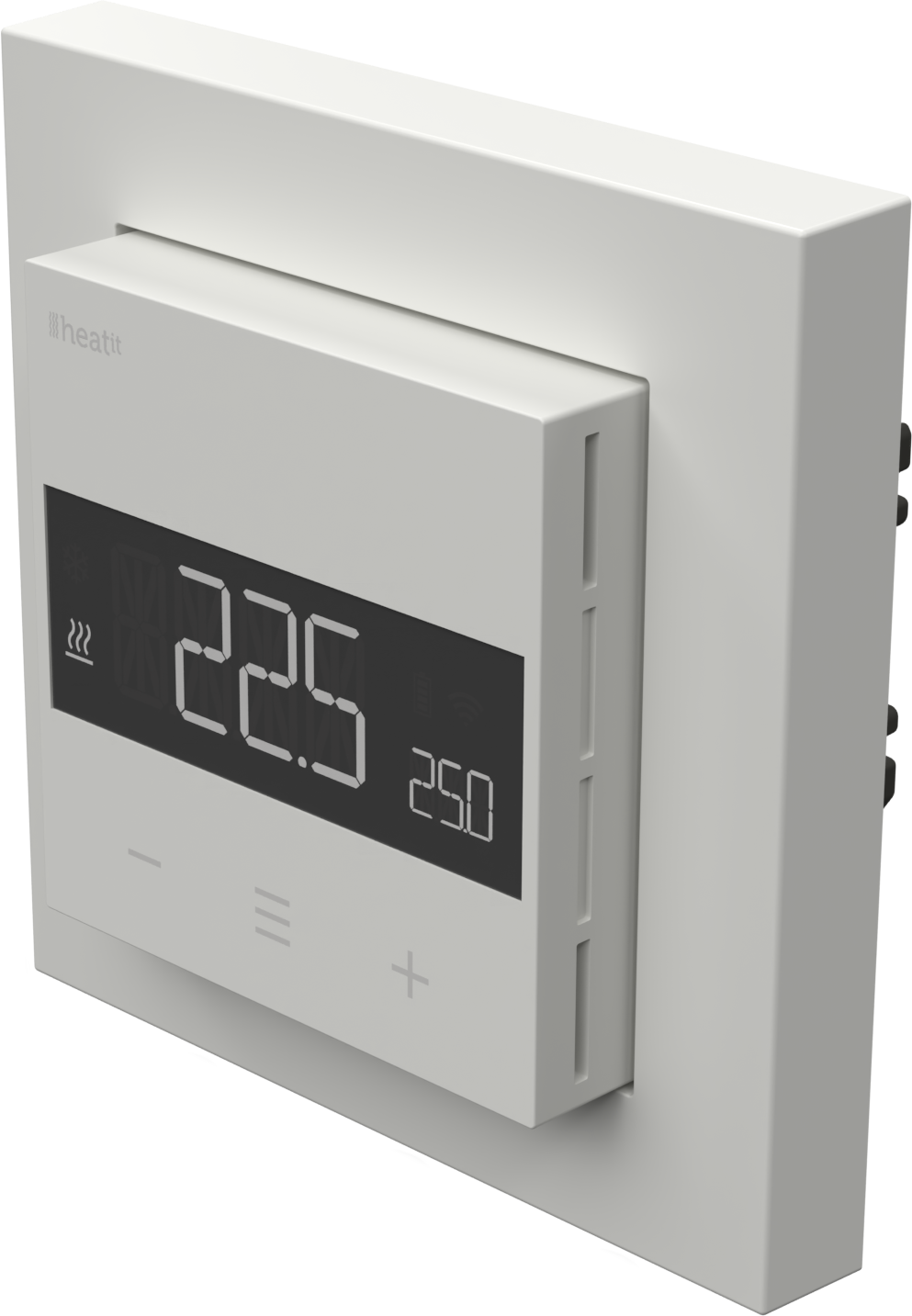

Heatit Z-TRM6 DC White RAL 9003

Z-Wave thermostat 3A (Dry Contact) 868.4 MHz

Buy product on Heatit.com

Art. no. 5430561

EAN/GTIN no. 7071236018988

Download Documents

Product information

Data sheet

Installation documents

Quick Guide

Manual

Text Download

General description

This text may be copied and used for marketing purposes of this product.

Click this icon to copy clean and unformatted text

Areas of use

This text may be copied and used for marketing purposes of this product.

Click this icon to copy clean and unformatted text

Unique Selling Propositions / USP

This text may be copied and used for marketing purposes of this product.

Dry contact - Thermostat especially for controlling loads connected potential-free.

Modes - The thermostat has 3 modes: Heat - Cool, and Eco. Cool and Eco are new features.

Metal frame - The thermostat features a metal frame for secure mounting in the junction box, which enhances the product’s durability in contrast to previous plastic solutions.

Associations - The thermostat can be set up with multiple associations and can be used as a master thermostat. It can control up to 10 thermostats and 10 external relays.

Power regulator - Heatit ZTRM-6 DC features a power regulator as an alternativ to temperatur regulation.

Hysteresis - With hysteresis regulation enabled, the thermostat will regulate solely based on temperature. The thermostat switches on and off based on the hysteresis value in relation to the setpoint.

Pulse width modulation/PWM - With pulse width modulation regulation enabled, the thermostat will regulate based on cycles. The thermostat switches on and off in percentage intervals of the cycle.

Open window detection - With open window detection, the thermostat detects if a window is open, allowing it to cut off heating when there is a rapid drop in temperature.

Manual powermetering - The thermostat has a manual power metering that gives you an overview of the consumption in real time. The size of load is set as a fixed value in the menu

Push buttons - With a combination of push buttons and touch functionality, the thermostat has become more user-friendly.
