Heatit WiFi7 White RAL 9003

Wi-Fi/BLE Thermostat 3600W 16A

Art. no. 5430545

EAN/GTIN no. 7071236019695

Download Documents

Product information

FDV (Preview)

Data Sheet (Preview)

Product documents

ZeroX Detection Information

ZeroX Deteksjon Informasjon

Generell info montering_General info installation

Installation documents

Manual

Quick Guide

Text Download

General description

This text may be copied and used for marketing purposes of this product.

Smart thermostat or relay. Heatit WiFi7 is an electronic thermostat designed for electrical heating and water based heating control. The Heatit WiFi7 can also function as a relay, allowing for simple On/Off functionality. The thermostat can be controlled via Wi-Fi or Bluetooth (BLE) using the "MyHeatit" App or with the buttons on the front of the thermostat. The thermostat features a user-friendly interface, complies with the Eco-Design directive and has an easy-to-read and clear 14-segment LED display.

Heatit WiFi7 has 3 modes: Heat - Cool and Eco.

It has a sturdy metal frame for secure fastening in the junction box. The thermostat has a built-in room temperature sensor. Two additional external temperature sensors may also be connected.

All Heatit products with Wi-Fi support and marked with the MyHeatit logo, can be controlled via our "MyHeatit" App. In the app, you can create profiles such as "Home", "Away", "Night", and "Work" to easily control, monitor, and organize your connected devices, or control them via a weekly schedule.

The installer configures the system via Wi-Fi. If Wi-Fi is not available, the system can be configured via Bluetooth. After the system is set up, the installer can transfer the property to the customer. The customer can then add the system to their local Wi-Fi network.

When used with Wi-Fi, the thermostat can communicate over a local API, allowing the user to integrate it with a local gateway, server, controller that offers such a service, without the need to connect it to the cloud. The device also supports Amazon Alexa and Google Home.

The thermostat can connect wirelessly to other devices via DirectLink and BlueFusion. It can be controlled by other thermostats, and it can also control other thermostats and relays.

Heatit WiFi7 features active power metering, providing real-time information about your power consumption. It also allows you to manually set the power metering value when connected to a contactor.

The device is equipped with ZeroX™ technology, which ensures the relay switches at 0V when turning on and off. This technology significantly extends the thermostat's lifespan.

Electrical Load Compatibility
The thermostat is designed specifically for resistive loads.
When controlling large resistive, capacitive, or inductive loads, it is essential to use an appropriate contactor to protect the thermostat from excessive load to ensure safe operation.

The thermostat can withstand a resistive load of up to 16A/3600W at 230VAC. For loads above 13A, we recommend using a contactor.

Click this icon to copy clean and unformatted text

Areas of use

This text may be copied and used for marketing purposes of this product.

Click this icon to copy clean and unformatted text

Unique Selling Propositions / USP

This text may be copied and used for marketing purposes of this product.

Modes - The thermostat has 3 modes: Heat - Cool, and Eco. Cool and Eco are new features.

Display - Easy-to-read and clear 14-segment LED display.

Metal frame - The thermostat features a metal frame for secure mounting in the junction box, which enhances the product’s durability in contrast to previous plastic solutions.

ZeroX™ Detection – The thermostat features ZeroX™ technology, which ensures the relay switches on and off at 0V, significantly extending the relay's lifespan.

Power Regulator – Provides effective temperature control, even without using the thermostat's internal or external sensors.

Open API - The thermostat supports local API communication, allowing users to integrate with a local gateway or server without the need for a cloud connection.

Temperature Limiter and Calibration – Temperature limiter and calibration offer accurate control, protecting against overheating and ensuring optimal comfort and safety.

Hysteresis - With hysteresis regulation enabled, the thermostat will regulate solely based on temperature. The thermostat switches on and off based on the hysteresis value in relation to the setpoint.

Pulse width modulation/PWM - With pulse width modulation regulation enabled, the thermostat will regulate based on cycles. The thermostat switches on and off in percentage intervals of the cycle.

ZeroX™ Detection – The thermostat features ZeroX™ technology, which ensures the relay switches on and off at 0V, significantly extending the relay's lifespan.

DirectLink and BlueFusion – Easily connect multiple products in the MyHeatit series, such as a master thermostat or controlling external relays. The thermostat can wirelessly connect to other devices via DirectLink and BlueFusion, providing flexible expansion and efficient control of multiple devices.

Open window detection - With open window detection, the thermostat detects if a window is open, allowing it to cut off heating when there is a rapid drop in temperature.

Active power metering - active power metering provides real-time information about your power consumption.

Flexible Installation – The installer can configure the system via Wi-Fi or Bluetooth, and once the installation is complete, the system can be connected to the customer’s local Wi-Fi network.

Open window detection - With open window detection, the thermostat detects if a window is open, allowing it to cut off heating when there is a rapid drop in temperature.

Overload Protection – The thermostat is equipped with built-in safety features such as overload protection and overheat protection for safe use.

Push buttons - With a combination of push buttons and touch functionality, the thermostat has become more user-friendly.

Firmware Updates (OTA) – Easy access to firmware updates to ensure the device is always up-to-date with the latest features.

Click this icon to copy clean and unformatted text

Logistics data

F-PACK Product's smallest sales packaging

Art no.	Product	Width	Height/dia.	Length	Weight	Quantity	Unit	EAN (GTIN13)
54 305 45	Heatit WiFi7 White RAL 9003	90mm	70mm	90mm	213g	1	ESK	7071236019695

M-PACK Product's intermediate packaging

Art no.	Product	Width	Height/dia.	Length	Weight	Quantity	Unit	EAN (GTIN13)
54 305 45	Heatit WiFi7 White RAL 9003	205mm	105mm	375mm	2240g	10	KRT	27071236019699

D-PACK Produktets største salgsforpakning

Art no.	Product	Width	Height/dia.	Length	Weight	Quantity	Unit	EAN (GTIN13)
54 305 45	Heatit WiFi7 White RAL 9003	385mm	550mm	425mm	23200g	100	KRT	37071236019696

Download images

Download complete image package (ZIP-format)

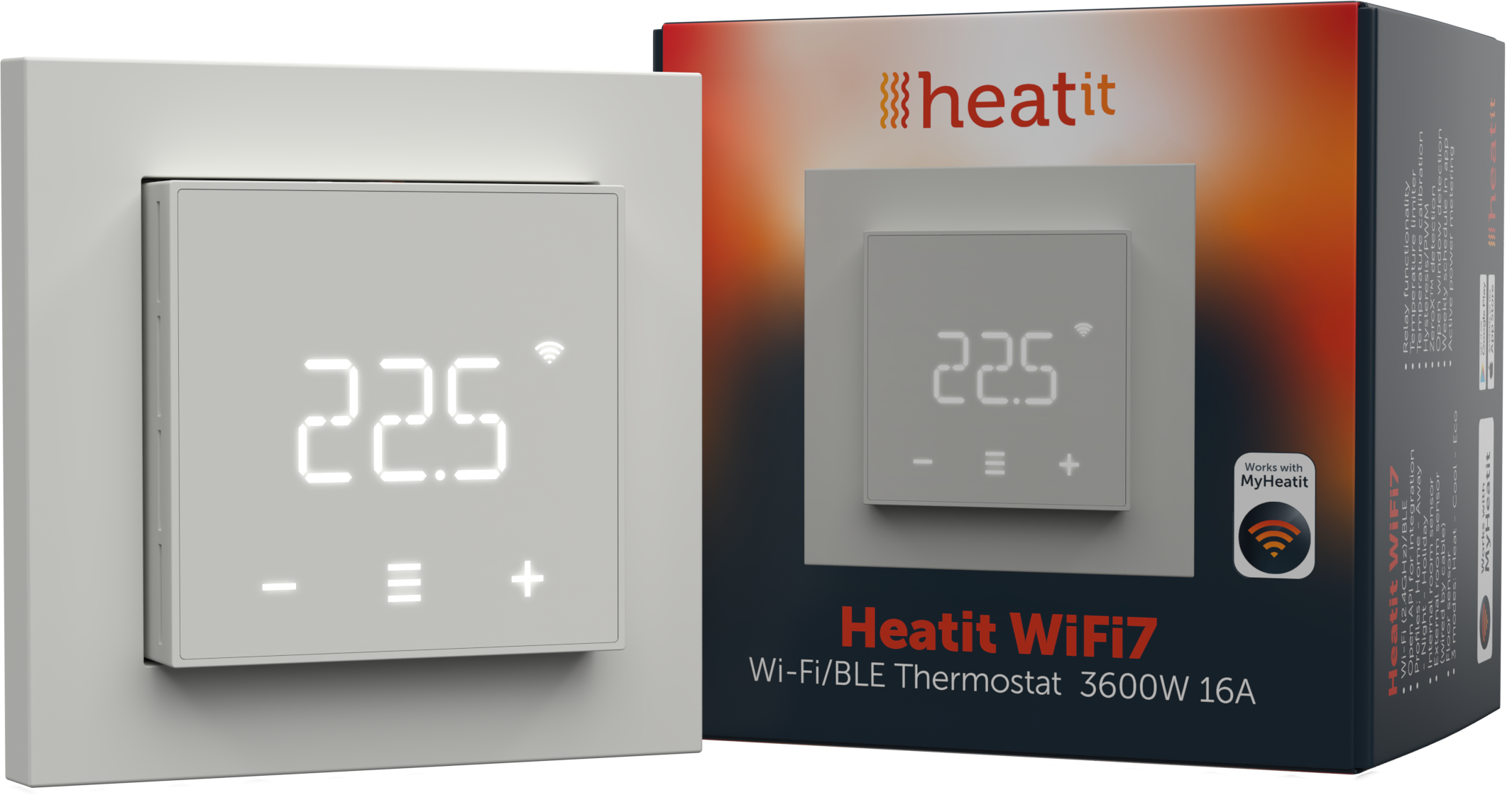

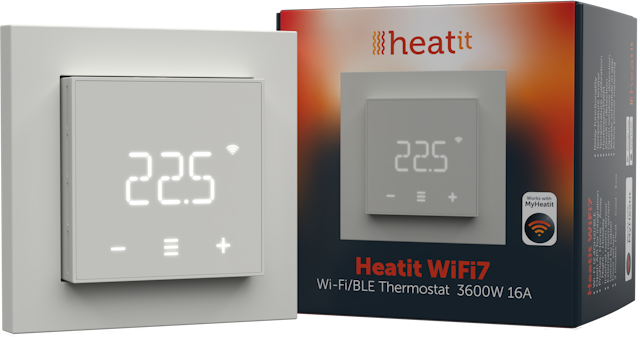

Main picture

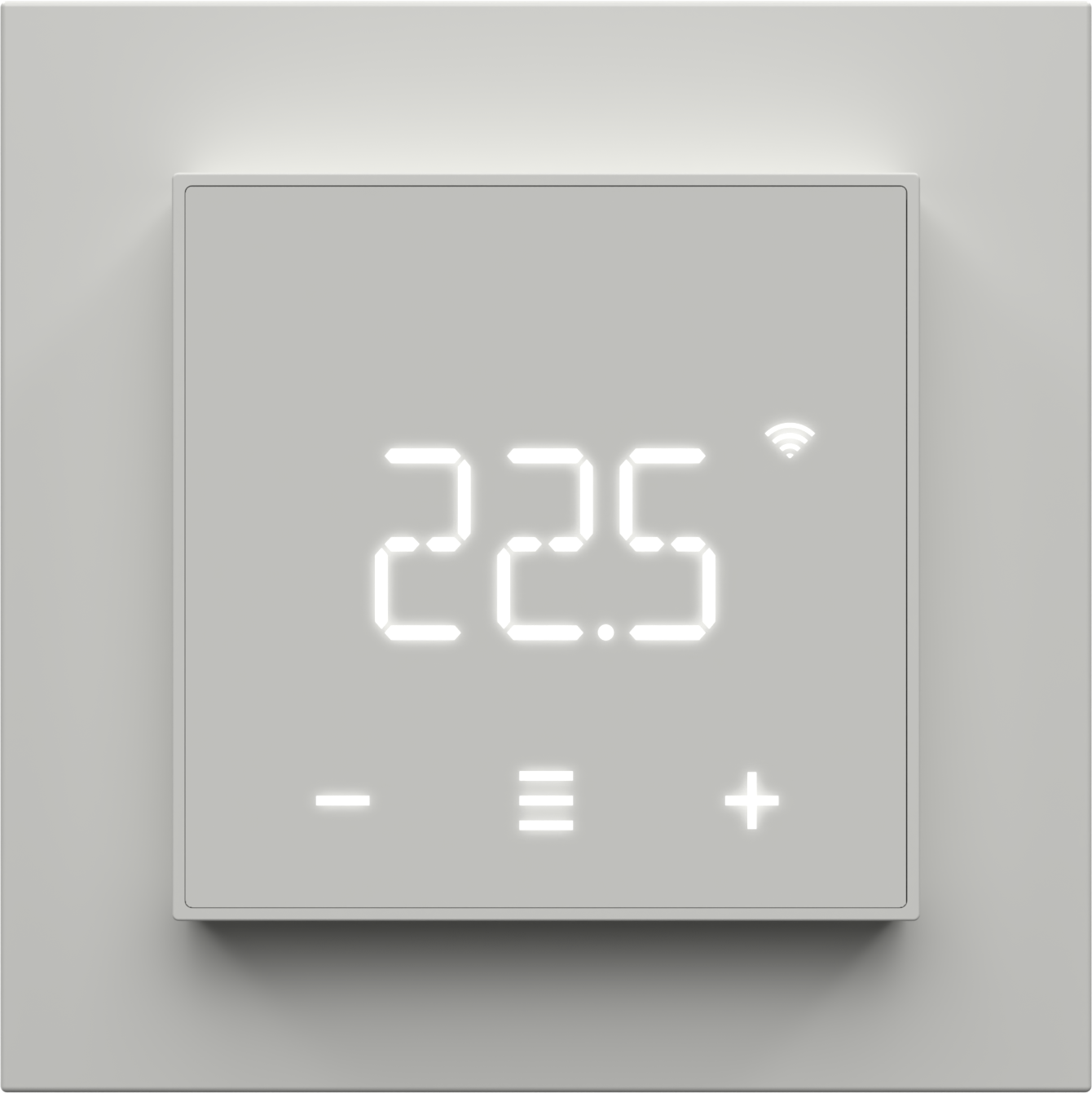

Product picture front view

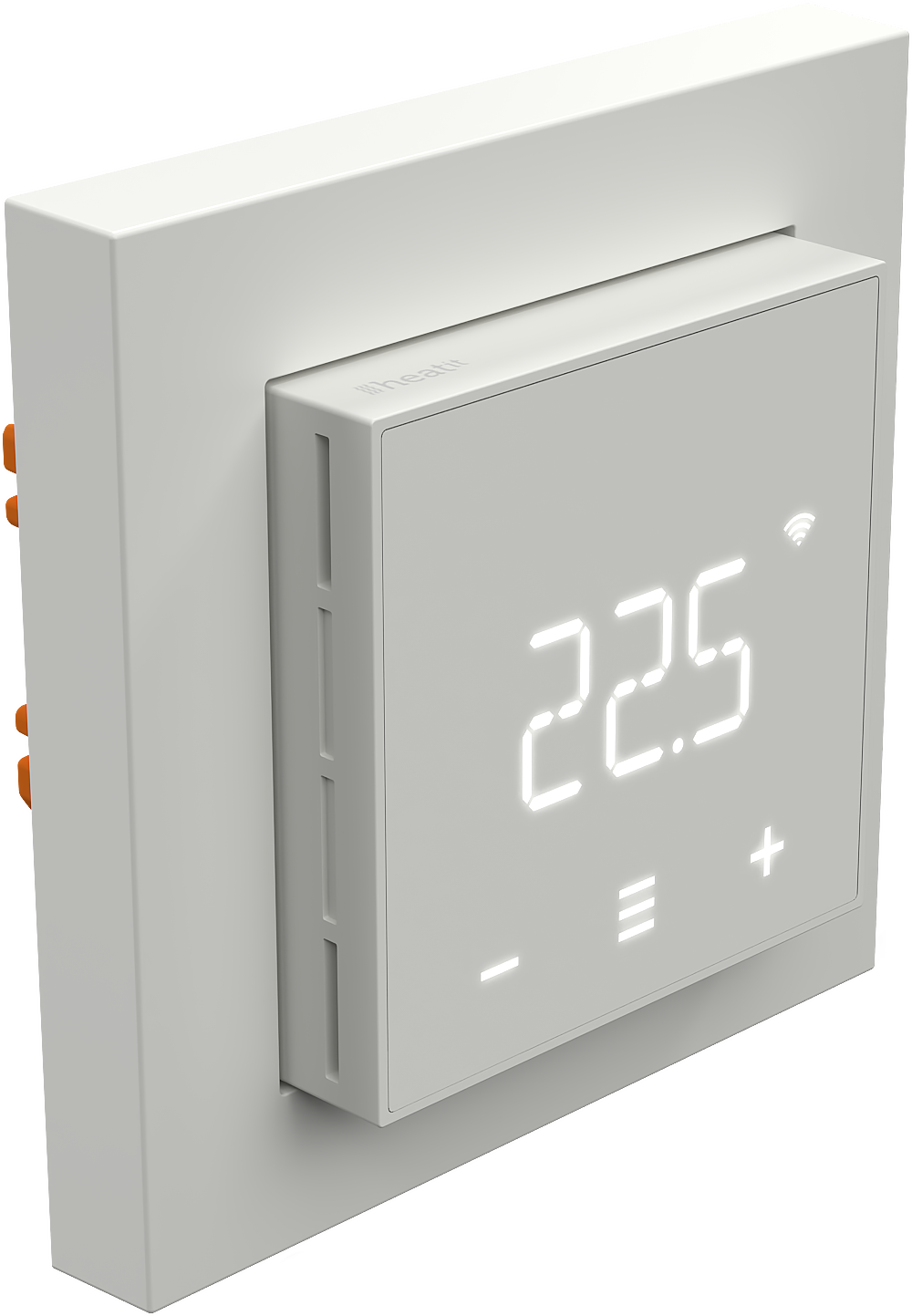

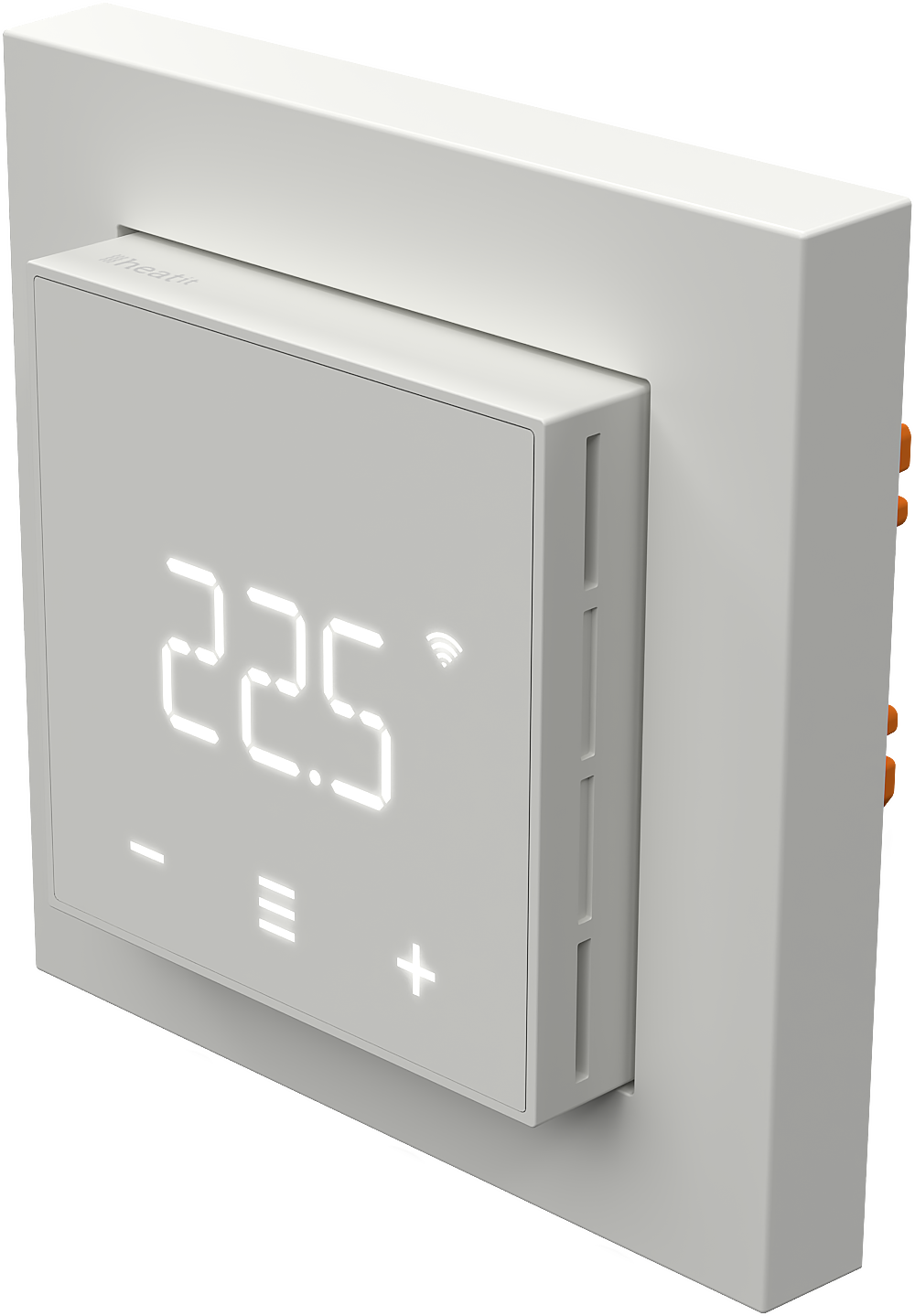

Product picture sloping

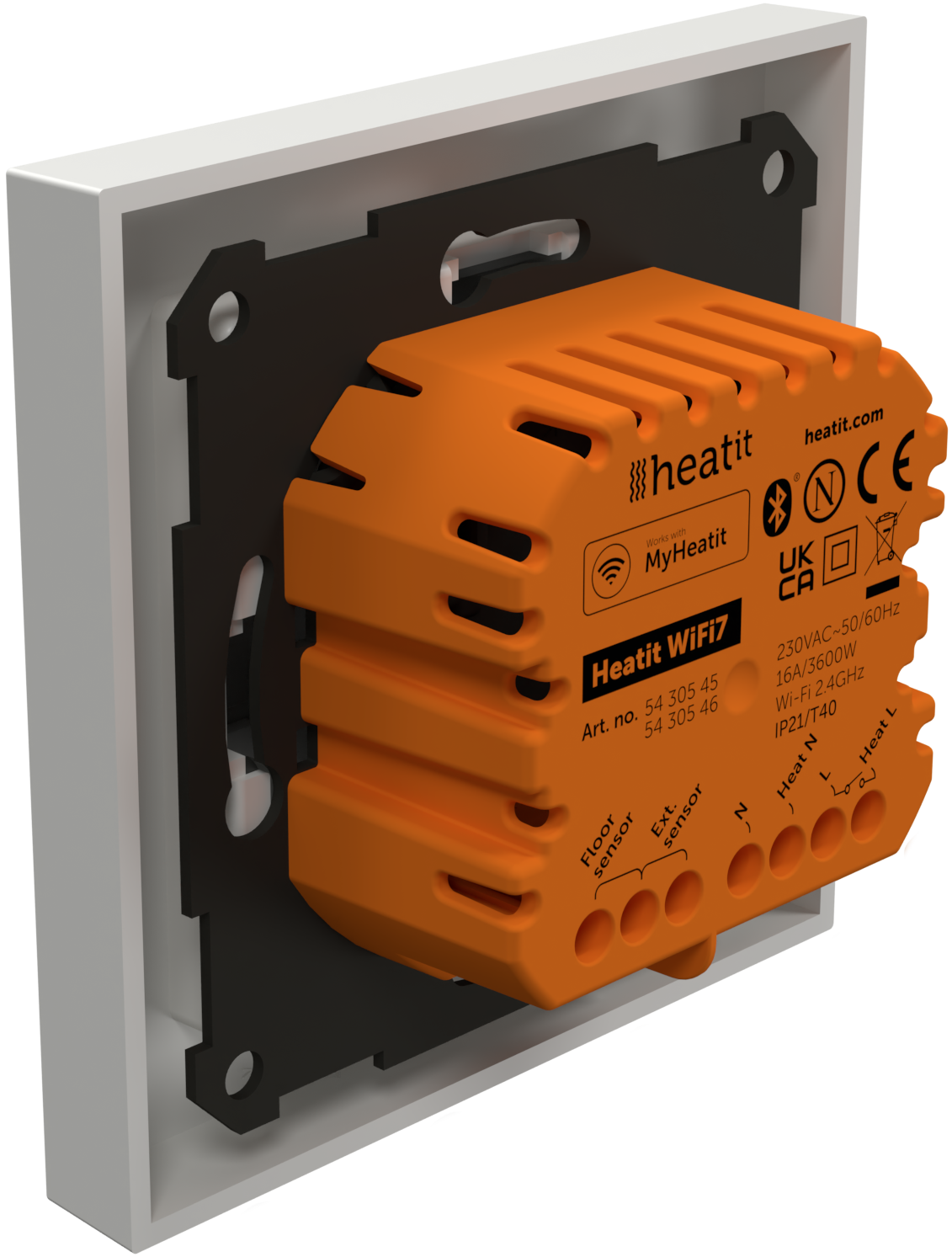

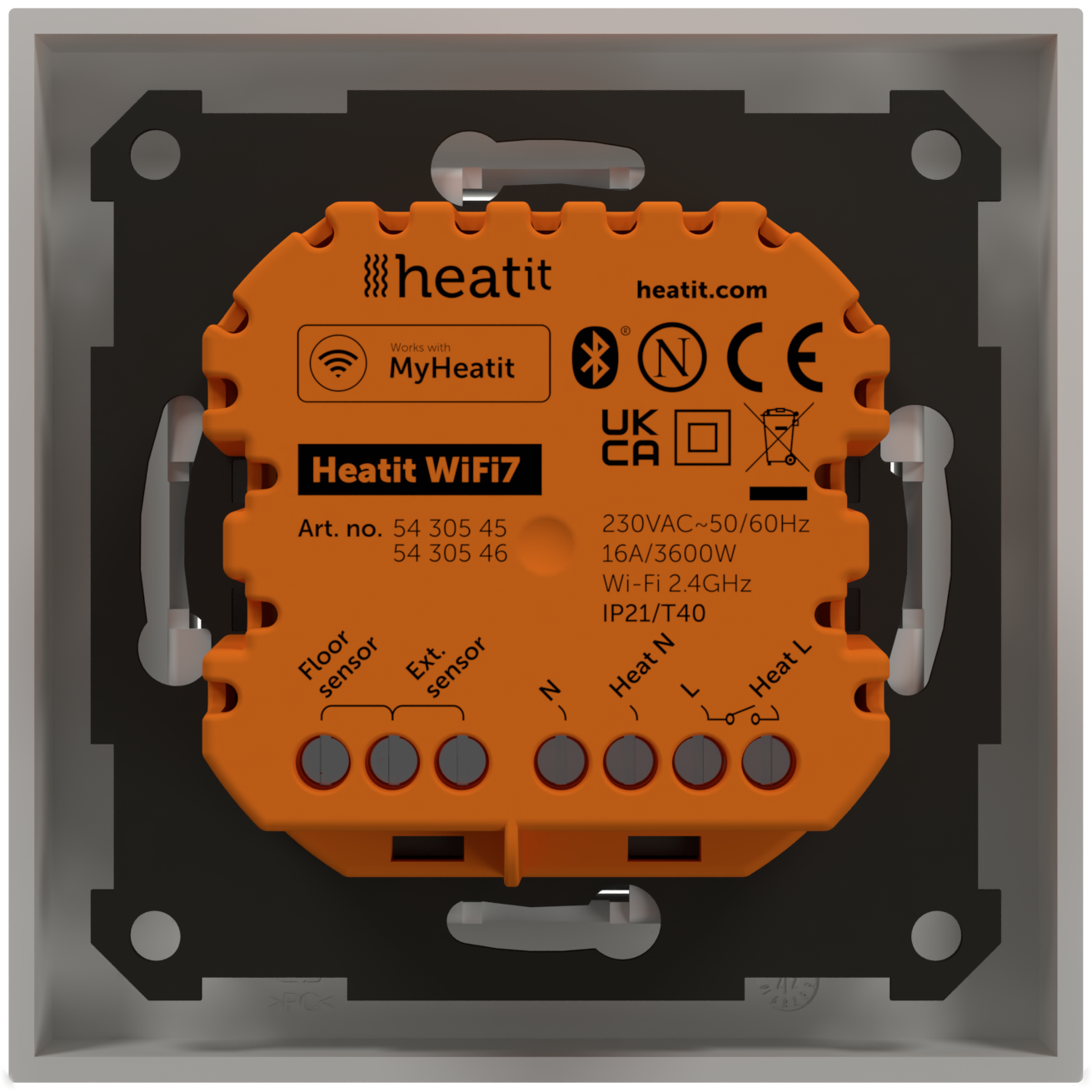

Product picture back view

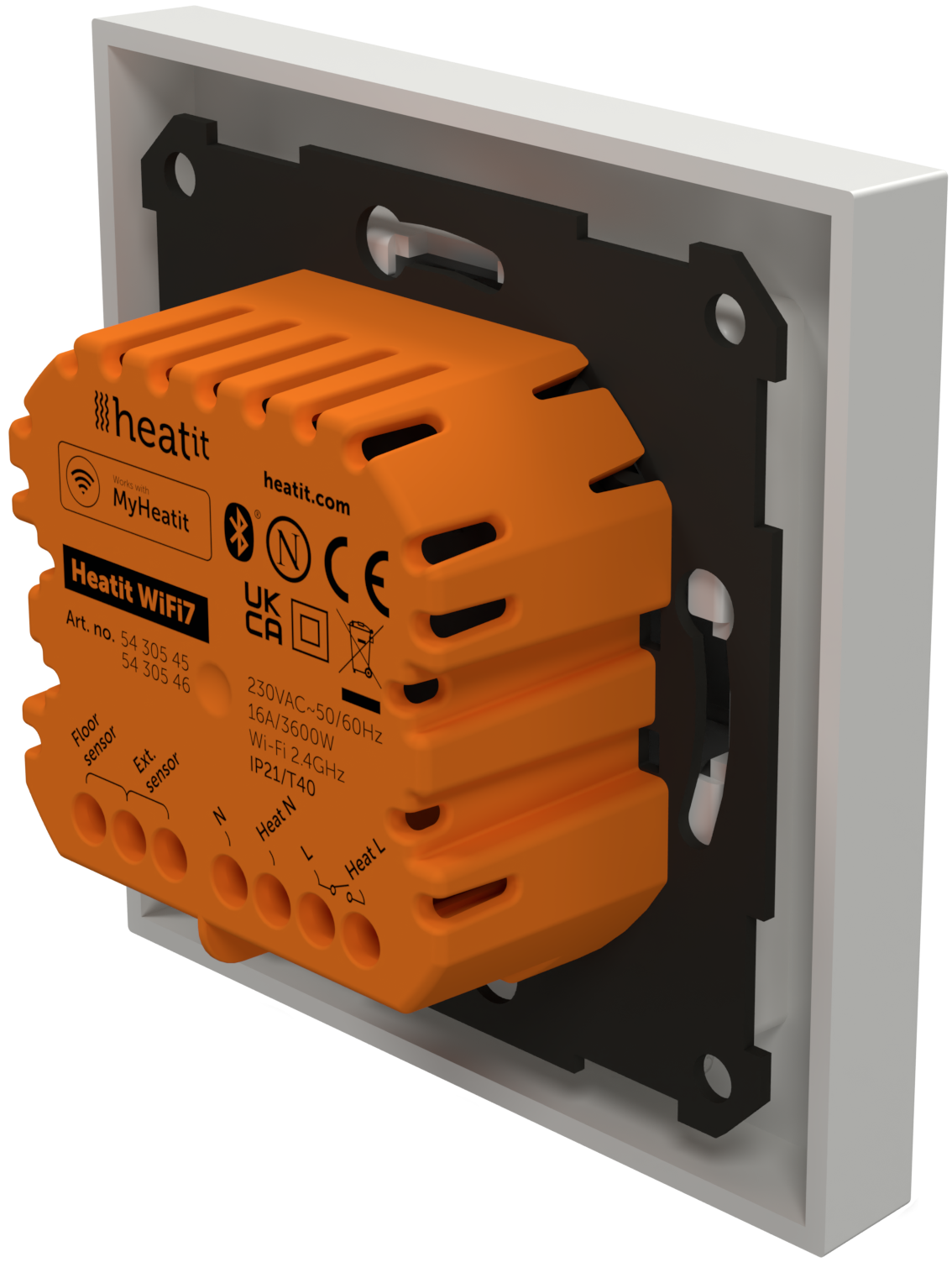

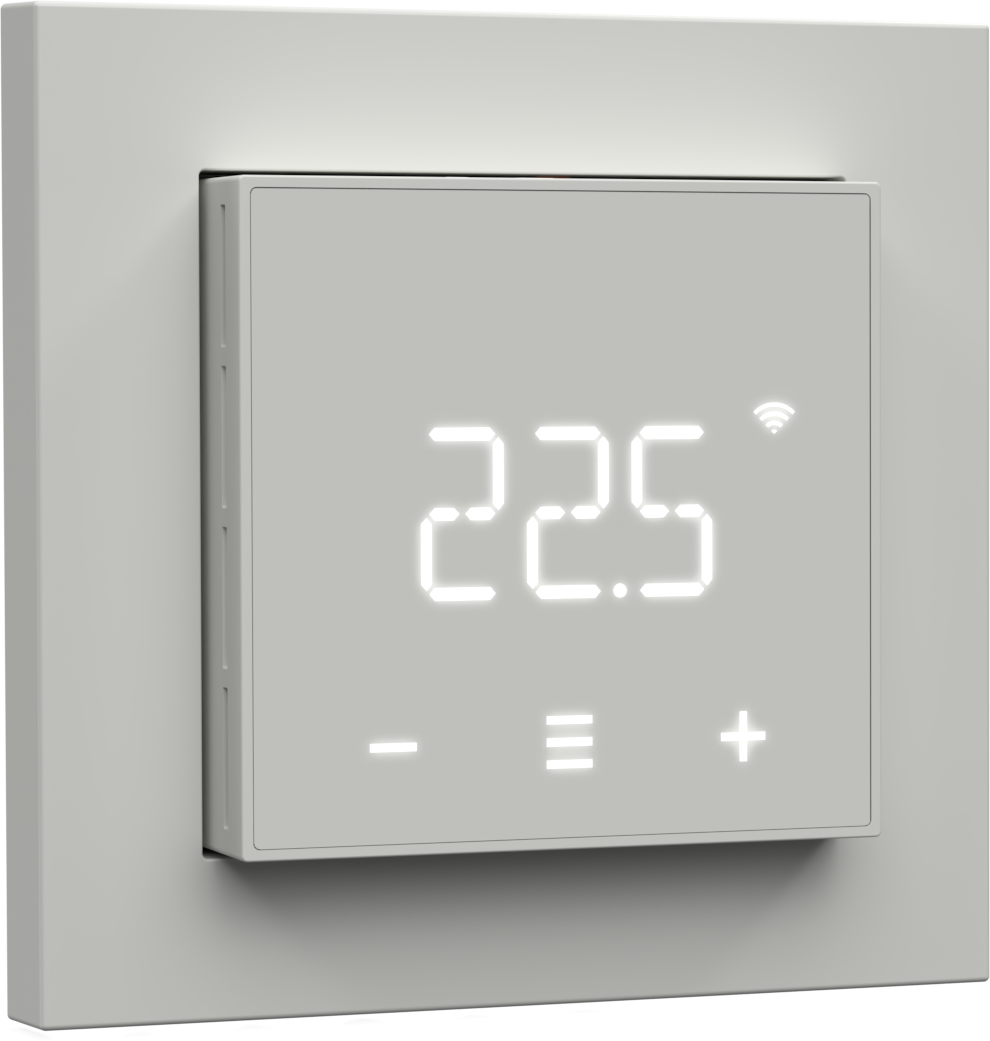

Product picture sloping
