Heatit Z-Temp3 Black Matt

Battery operated thermostat Z-Wave

Buy product on Heatit.com

Art. no. 4512691

EAN/GTIN no. 7071236018391

Download Documents

Product information

Data sheet

Product documents

Bruksområder

What can you use it for?

Installation documents

Manual

Quick Guide

Text Download

General description

This text may be copied and used for marketing purposes of this product.

Heatit Z-Temp3 is a battery-operated thermostat designed for controlling waterbased heating systems. Used in combination with the Heatit Z-Water2, you can control your heating system through the Z-Wave® network or via the buttons on the front panel. The thermostat has a user-friendly interface.

Heatit Z-Temp3 has 3 modes: Heat, Cool, and Eco.

The thermostat fits into System 55 frames, and may be mounted alongside other equipment such as e.g dimmers or light switches. Heatit Z-Temp3 can also be mounted directly on the wall or placed freely, e.g. on a shelf.

Heatit Z-Temp3 can be set as a master thermostat. This means that you can set the setpoint and mode on one unit, and it will automatically send the setpoint and mode to other connected units.

All communication between Heatit Z-Temp3 and the controlled device is 100% wireless.

Heatit Z-Temp3 uses 2x AAA batteries, but you can also connect the device to an external power source. The Heatit Transformer 230VAC (45 126 48) is recommended for this purpose.

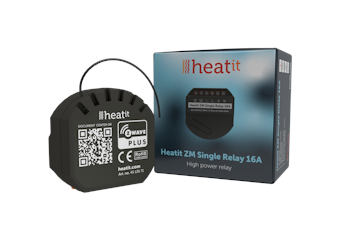

Heatit Z-Temp3 can be associated with Heatit ZM Single Relay, other Z-Wave relays, Heatit ZM Thermostat, Heatit Z-TRM6 Thermostat and other Z-Wave devices to control other types of heating solutions.

Heatit Z-Temp3 is a great choice for the restoration or renovation of existing buildings, as it is easy to install without the need for wiring. We recommend using multiple 230VAC devices to create a mesh network.

Click this icon to copy clean and unformatted text

Areas of use

This text may be copied and used for marketing purposes of this product.

Click this icon to copy clean and unformatted text

Unique Selling Propositions / USP

This text may be copied and used for marketing purposes of this product.

Modes - The thermostat has 3 modes: Heat, Cool, and Eco.

Associations - The thermostat allows you to set associations, making it a master thermostat. In total, it can control 10 thermostats and 10 external relays.

Hysteresis - With hysteresis control enabled, the thermostat will regulate based solely on temperature. The thermostat engages and disengages based on the hysteresis value in relation to the setpoint.

PWM/Pulse with Modulation - With PWM/pulse with modulation control enabled, the thermostat regulates based on cycles. The thermostat engages and disengages in percentage intervals of the cycle.

Open Window Detection - With open window detection, the thermostat senses if a window is open, cutting off heating in the event of a rapid temperature drop.

Push Button - With a push button that provides clear feedback during use.

External Power Supply - Option for connecting an external power supply.

System 55 - Fits into standard frame systems. Blends easily into your existing design.

AAA Batteries - Standard batteries that are commonly available.

Click this icon to copy clean and unformatted text

Logistics data

F-PACK Product's smallest sales packaging

Art no.	Product	Width	Height/dia.	Length	Weight	Quantity	Unit	EAN (GTIN13)
45 126 91	Heatit Z-Temp3 Black Matt	87mm	25mm	90mm	113g	1	STK	7071236018391

M-PACK Product's intermediate packaging

Art no.	Product	Width	Height/dia.	Length	Weight	Quantity	Unit	EAN (GTIN13)
45 126 91	Heatit Z-Temp3 Black Matt	278mm	100mm	194mm	1910g	20	ESK	27071236018395

D-PACK Produktets største salgsforpakning

Art no.	Product	Width	Height/dia.	Length	Weight	Quantity	Unit	EAN (GTIN13)
45 126 91	Heatit Z-Temp3 Black Matt	408mm	520mm	295mm	19800g	200	KRT	37071236018392

Download images

Download complete image package (ZIP-format)

Main picture EFO

Product picture front view (MD26)

Product picture view from the right side (MD30)

Product picture view from the left side (MD29)

Product picture sloping (MD27)
